Key Features
UHD Recording from DVD, OTT, Receiver, PC, PS and Xbox
Dual mode design, HD recording on external USB
storage (Standalone) or PC HDD

H.264 HD hardware encoding up to 1080P 60FPS
Instant Playback & Pre-set schedule recording
OSD control with multi-languagez

HDMI pass-through without latency
Recording data rate up to 16Mbits/sec in MP4 format
Recording audio via integrated microphone input
Support remote control (IR)

Specification
Bit rate:Bit rate Max: 16Mbps, default 10Mbps
Recording file size:Max 2GB, new recording file generated automatically after each 2GB recorded

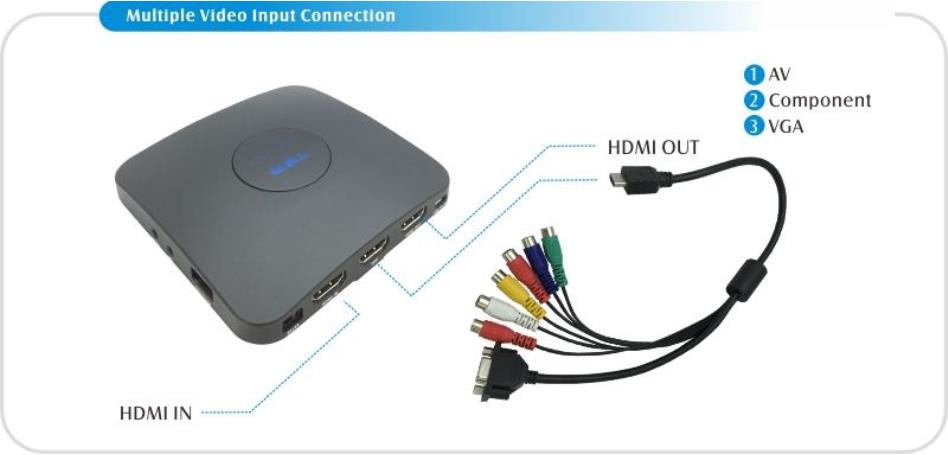

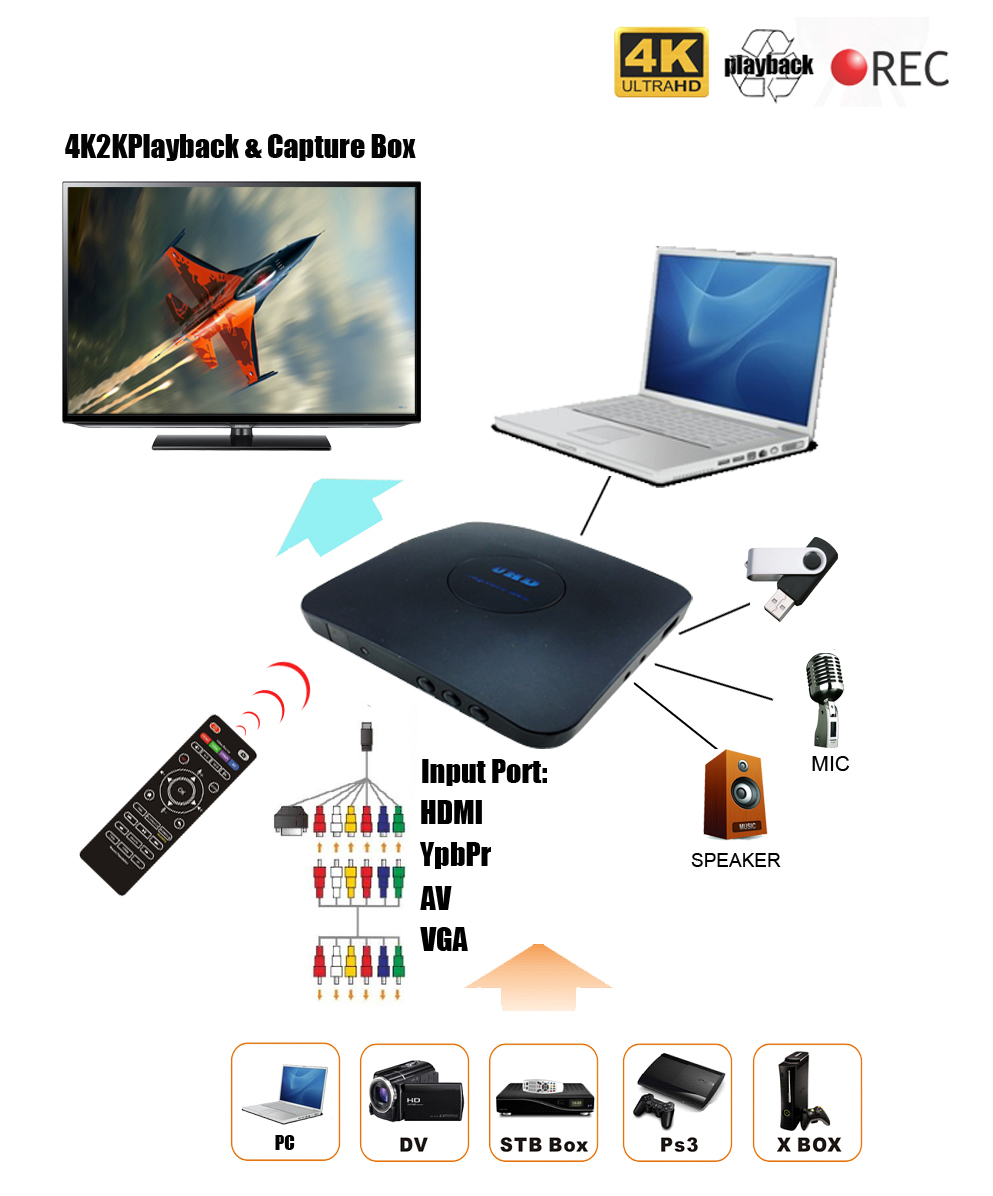

Input:
HDMI
Analog MMI (Component (YPbPr) + Composite (CVBS) + VGA)
MIC (Audio in) & Remote controller (IR in)

Output:
HDMI
USB 2.0 storage (HDD & Pen drive)
Micro USB for PC connection
720*480(30p) , 720*480(60p) , 720*576(30p) , 720*576(60p)
Loop Through
1280*720(30p),1280*720(60p),1920*1080p(30p),1920*1080p(6
Video Resolution
0p), 2560x1040, 4096x2160
Capture
Up to 1080p @ 60fps

UHD capture box
Remote control unit
HDMI cable
Micro USB to USB cable
MMI cable (Component + Composite + VGA)
Software DVD
Power Adapter 12V1A
