Key Features
    HDMI 2.0 pass-through, comply with HDCP 2.2
    Support Game consoles like PS5, Xbox One & Xbox 360, Nintendo Switch & Wii U etc.
    Input and Output: 4k60
    Capture same video resolutions as input:
        UHD: 4K30, 4K25, 4K24
        FHD: 1080p60/p50/p30/p25/p24, 1080i60, 1080i50
        HD: 720p60, 720p50
        SD: 576p50, 480p60, 576i50, 480i60

    Capture format: H.264/H.265 High profile/AAC/MP4/TS
    Sampling rate: 48kHz PCM
    Record from your STB, Receivers, OTT Boxes，Google Stick, Roku etc.
    Record MP3 files from Line in port(128kps/196kps/320kps)
    Bitrate in H.264 recording: MAX 200Mbps (MAX:4K30)
    Bitrate in H.265 recording: MAX 200 Mbps Mbps (MAX:4K30)
    Modify the recording file name or customize the recording file name through OSD
    Video or music can pause recording
    Recording files can be stored in 16GB or unlimited
    Storage can be TF, USB, or hard disk( TF 512G/USB 1T/Hard Disk 4T or more)
    Support: FAT32/NTSF/exFat/Gbt/SSD or MORE
    Screenshot format: JPG
    Instant Playback & Pre-set schedule recording
    OSD control capture VIDEO(MP4 or TS) and AUDIO(MP3)
    OSD control with multi-language
    UVC support for PC 4K60 USB3.0 (Windows/Liunx/MAC)
    USB port support cam and capture card

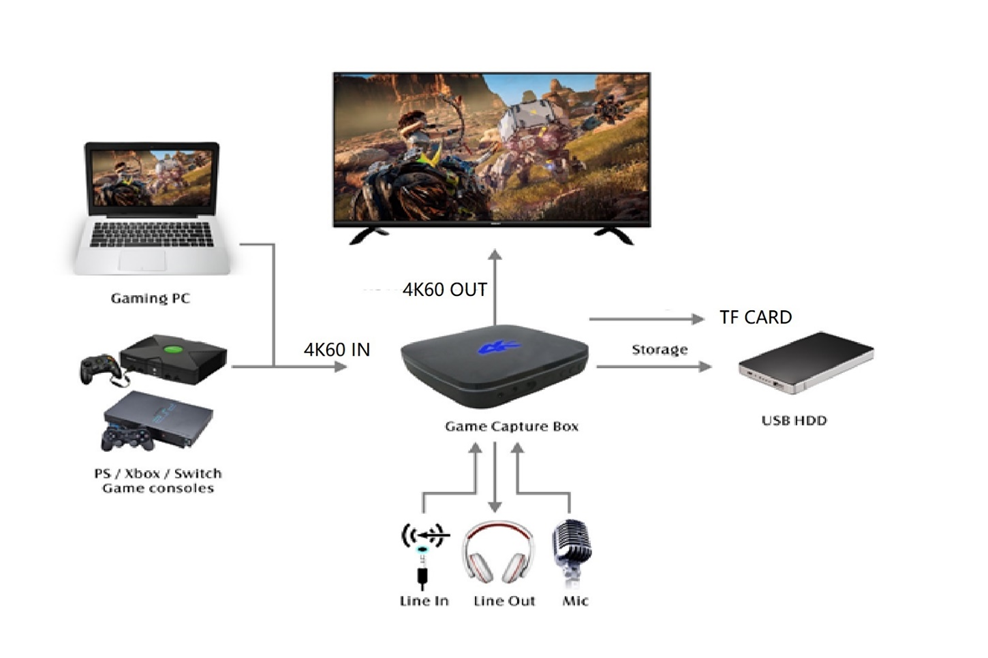

I/O Connectors
    HDMI In & Out (HDMI 2.0)
    Line In & Line Out & Microphone (3.5mm audio jack)
    USB 3.0 Type A (for storage)
    TF CARD (for storage)
    TYPEC 3.0 (for PC)
Package Contents
    Video Recorder
    Remote control
    HDMI 2.0 cable and typec cable(0.8m)
    Power adapter 12V1A
    Quick Start Guide
Storage Device
    USB flash drive Max. 512GB; USB HDD Max. 8TB
    Supported Storage Format: FAT32, NTFS, exFAT,GPT,MBR etc
    File Size: FAT32：4G/file; NTFS & exFAT: 32GB/file
